Bettermaker Mastering Equalizer

BETTERMAKER MASTERING EQUALIZER

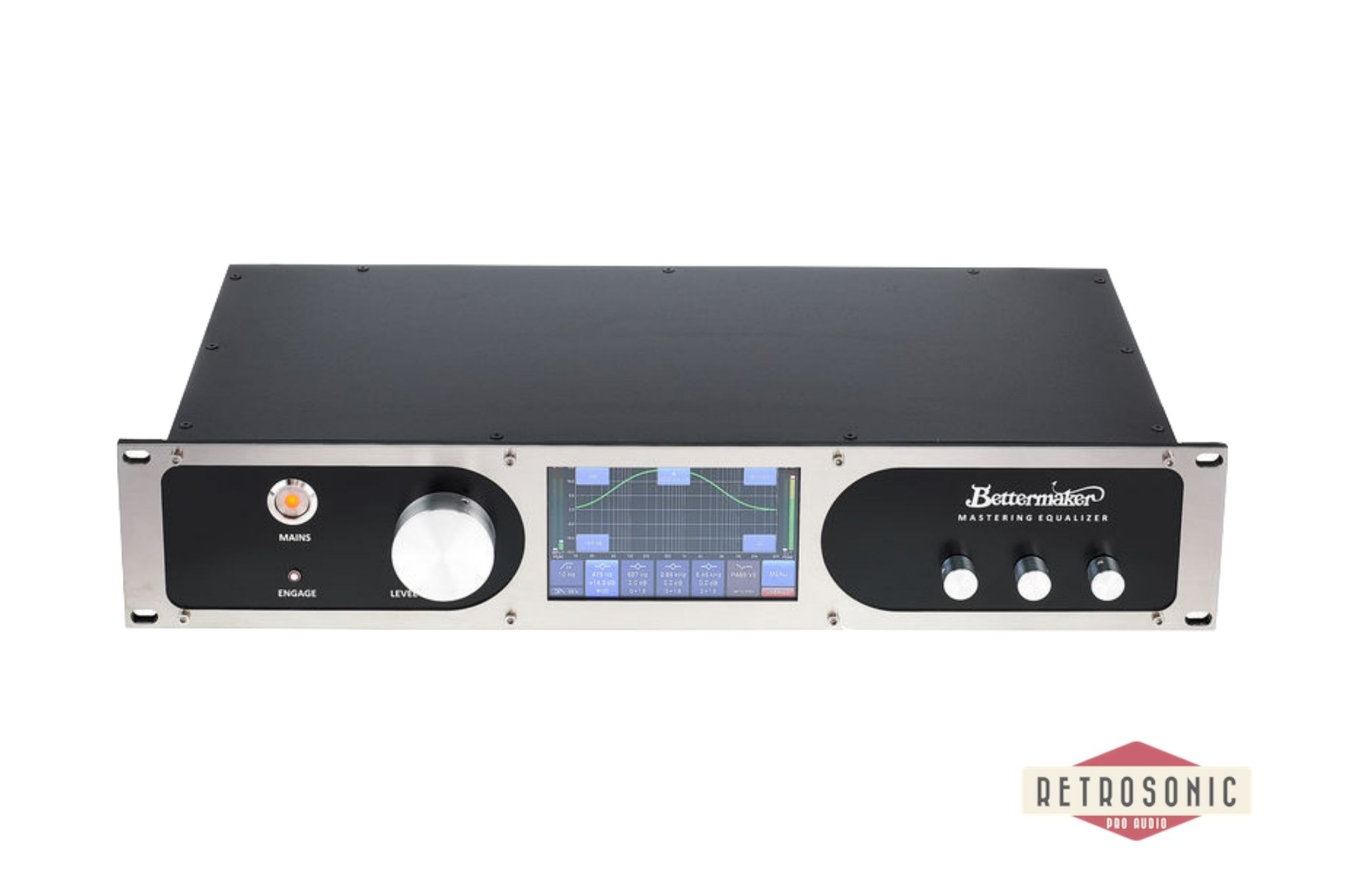

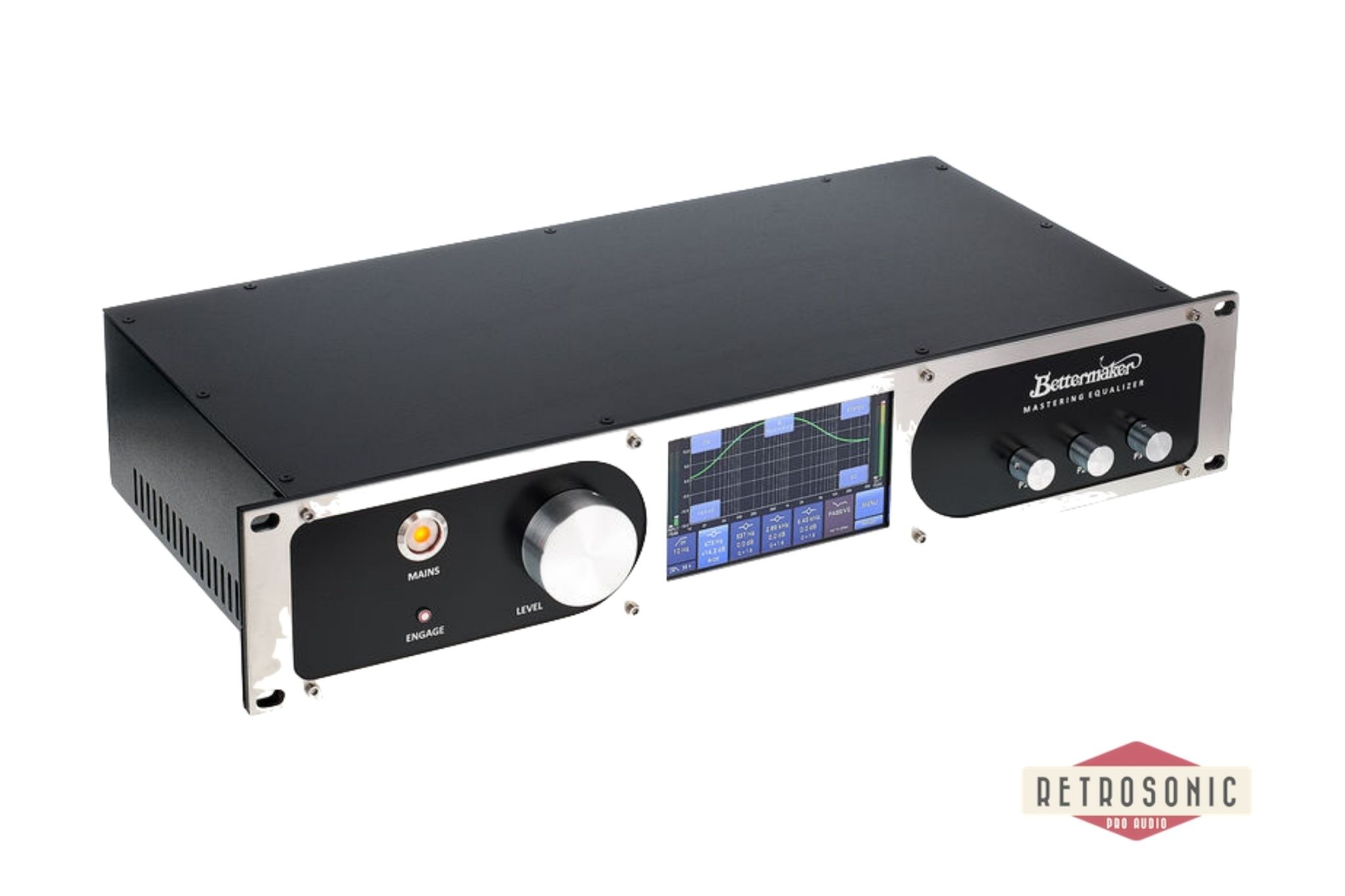

Bettermaker Mastering Equalizer for those who seek outstanding EQ quality with the convenience of fast and precise recall and automation.

It offers 100% signal path, passive as well as parametric filters, high pass filter with changeable slope and resonance, Stereo/Dual mono/MS operation and a metering section with EQ curve representation.

All this with mastering grade sound and patented recall with a speed of a native plugin.

– 100% analog audio signal path
– USB connectivity with MAC/PC
– all parameters are digitally controlled via touchscreen and/or DAW (with dedicated plugin)
– 399 presets with unique names, total recall, A/B comparison
– 5-inch capacitive touchscreen with backlight, four encoders with push-button action for ease of
control
– stereo, dual-mono and mid/side operation modes with focus function
– stereo 12 or 24dB/oct high-pass filter with adjustable cutoff frequency (10Hz – 240 Hz; extended
to 6Hz with the resonance enabled)
– four stereo parametric filters with 15dB boost/cut range, variable Q (0.2 – 7):
– EQ1: 22Hz – 470Hz (bell/shelf)
– EQ2: 90Hz – 2kHz (bell)
– EQ3: 480Hz – 10kHz (bell)
– EQ4: 1kHz – 23kHz (bell/shelf)
– stereo passive equalizer with extended hi-boost section (air bands: 20 and 28 kHz)
– stereo, 12dB/oct low-pass filter with adjustable cutoff frequency (2 – 38 kHz)
– adjustable output level (+/- 10dB)
– Frequency Search, Gain Lock, Note and Auto-Q functions
– on-board measurement of PEAK/RMS levels and RTA analyzer
– on-screen live representation of the equalization curve

– Frequency response: 20Hz to 20kHz (+/- 0.2 dB)
– Dynamic range: 128 dB @ +18 dBu, 20 kHz BW
– THD+N: 0.03% @ +4 dBu, 0.06% @ +18 dBu, 20 kHz BW
– CMRR: max 85 dB @ 3 kHz, min 52 dB @ 20Hz, 20 kHz BW
– Crosstalk: min -100 dB @ 30Hz, max -65 dB @ 20kHz, +18 dBu, 20 kHz BW

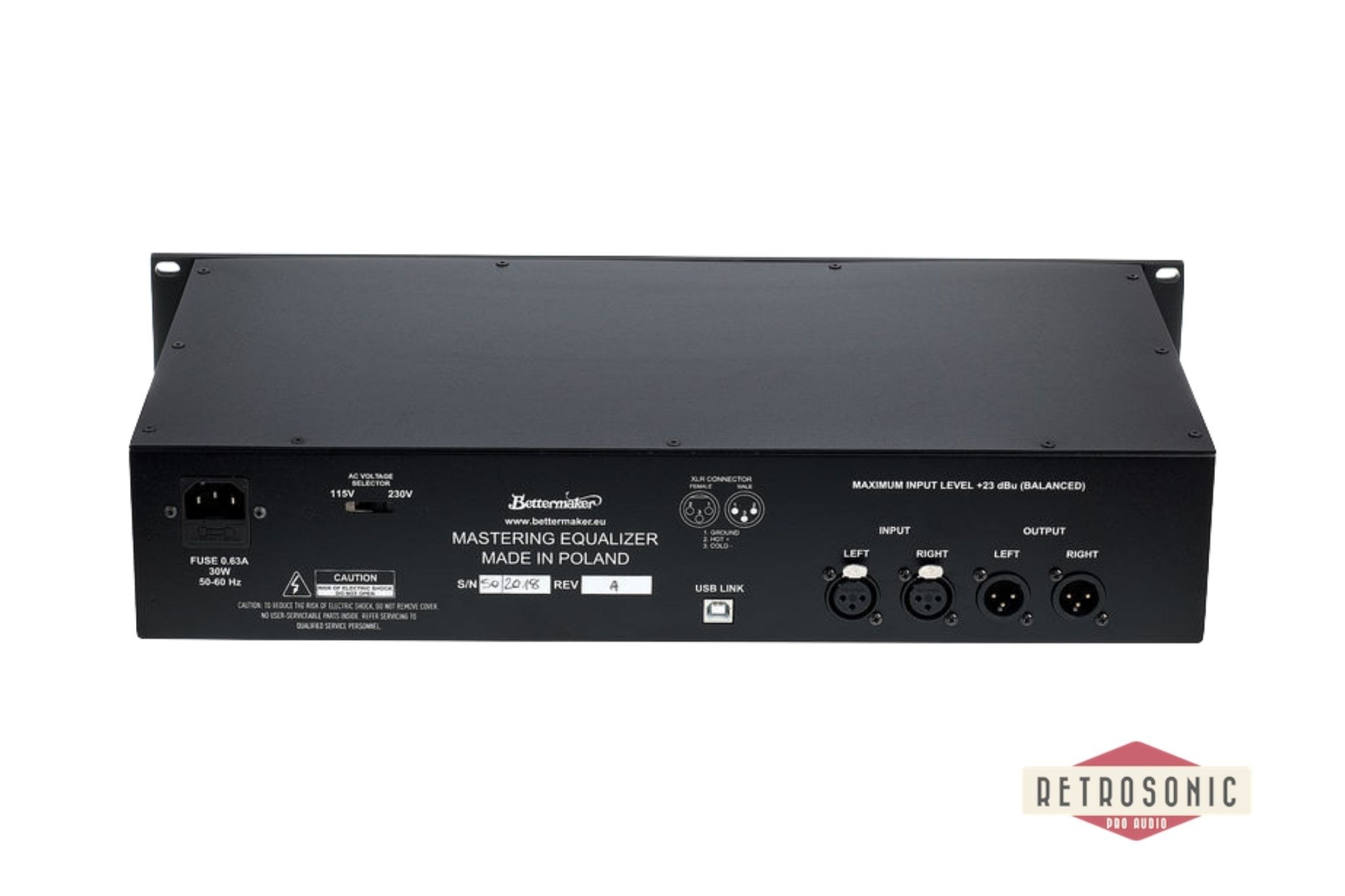

– balanced stereo input (XLR), 23dBu max input level (THD < 0.2%)
– balanced stereo output (XLR), 23dBu max output level (THD < 0.2%)
– Operating Level: +4dBu
– Input impedance (differential): 48kΩ (for balanced signal)
– Output Impedance: 50Ω + 50Ω (electronically balanced)
– Size: 2U enclosure, 230mm deep
– PSU: 115/230V switch
– Power: advanced linear power supply with toroidal AC mains transformer
– Maximum power consumption: 20W
– Shipping weight: 5.5 kg
