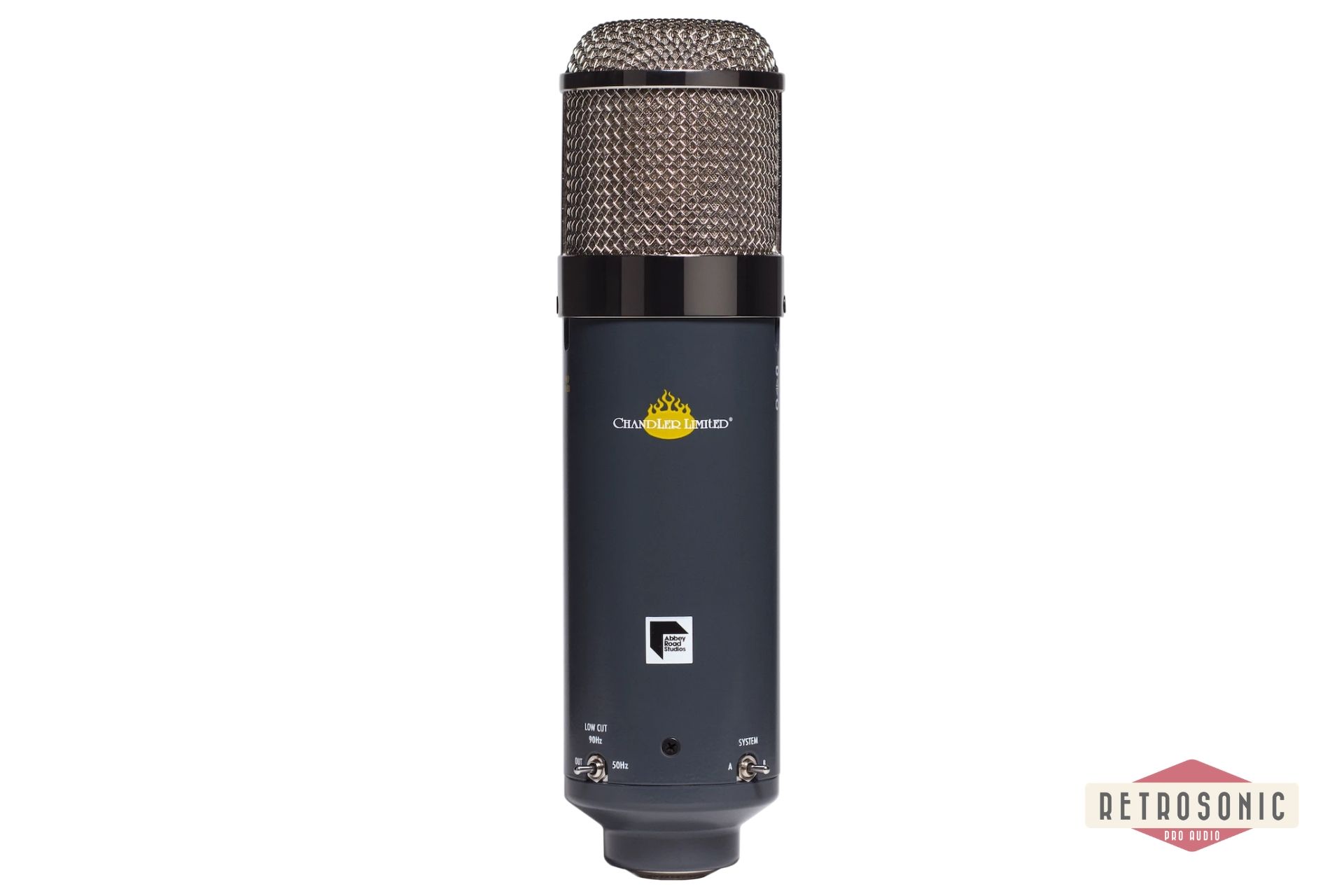

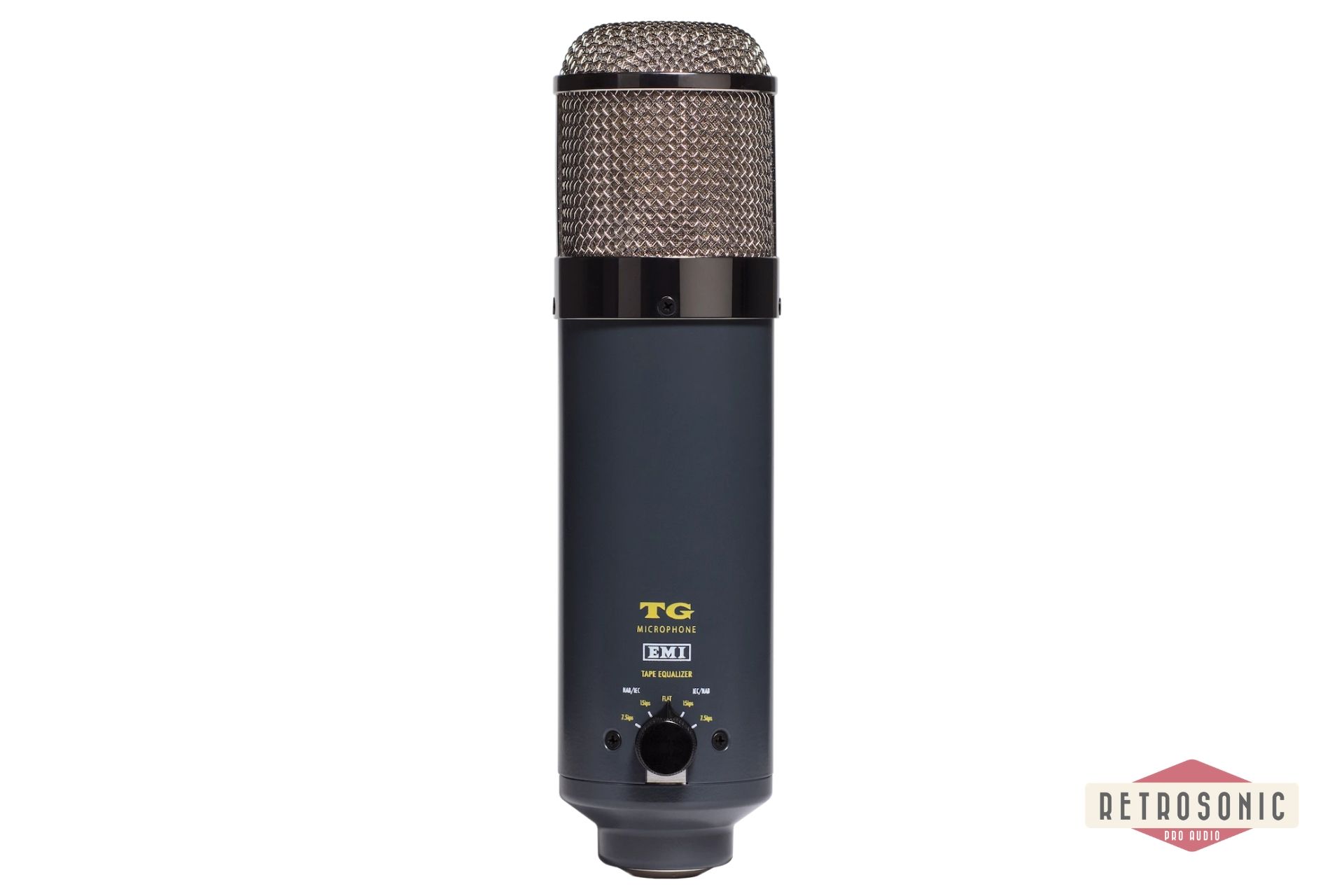

Chandler TG Microphone

The Chandler Limited EMI Abbey Road Studios ‘TG Microphone’ is a solid-state large diaphragm condenser microphone. Continuing the rich tradition of innovation, the TG Microphone is unique in its feature-set, isn’t a clone of any other microphone, and as the name implies, the sound is TG.

The TG Microphone’s unique on-board EMI ‘Tape Equalizer’ section combined with its ‘Dual Tone System’, dedicated PSU and other features create an extremely flexible microphone capable of rivaling scenarios where the FET47, C414 and U47 traditionally have found favor.

The Tape Equalizer is adapted from the NAB/IEC tape equalizer facility found on vintage EMI TG12410 transfer consoles or mastering consoles, and applied with great effect in the TG Microphone. Historically used to compensate for tapes played back on machines of the opposite standard, the repurposed tape equalizer allows the engineer to shape the sound at the source and mitigates the need for injecting equipment downstream.

The ‘Dual Tone System’ modifies the input stage of the TG Microphone and extends the versatility of the microphone to accommodate a greater array of sources. System ‘A’ is what you’d expect, TG mid forward, while the alternate ‘B’ voicing is more pristine, takes extreme SPLs and is at home wherever a FET47 would be the choice.

The microphone’s specialized Low-Cut filter in combination with Tape Equalizer work together to create a super-set of 5 additional tonal variations available from the mic. The Low-Cut filter is frequency selectable at 90 Hz or 50 Hz.

Much like tube microphones, the TG Microphone relies on a dedicated power supply (PSU). The use of a dedicated PSU, rather than 48V phantom power is integral to the TG Microphone’s larger than solid-state sound.

The TG Microphone makes use of multiple TG amplifier circuits, however, unlike the heralded REDD Microphone, does not feature an internal preamp.

Other features include: cardioid and omni patterns, and a 10 dB pad.

Shockmount, 25’ Mogami 4-pin mic cable, dedicated PSU, and wooden case are included.

Microphone Type: Large Diaphragm Condenser
Transducer Type: Gold membrane, custom spec.
Circuit Type: TG, Solid-state
Dual Tone System: A/B voicing
Tape Equalizer: TG, 5 settings
Low-Cut Filter: Switchable— Out, 90 Hz/50 Hz
Patterns: Cardioid / Omni
PAD: 10 dB / Switchable
Impedance: 200Ω
Power: External, PSU included
Mic Cable: 4 Pin, 25' Mogami, included
Shockmount: Included
Case: Wooden, Included
