Digidesign / Avid 192 16-Ch AES/TDIF/ADAT Digital Interface SU00633

The Digidesign 192 I/OTM 16-channel digital audio interface is designed for use in a Pro Tools|HD system.
The 192 I/O features 24-bit analog-to-digital (A/D) and digital-to-analog (D/A) converters, and supports sample rates of up to 192 kHz.

192 I/O Features:

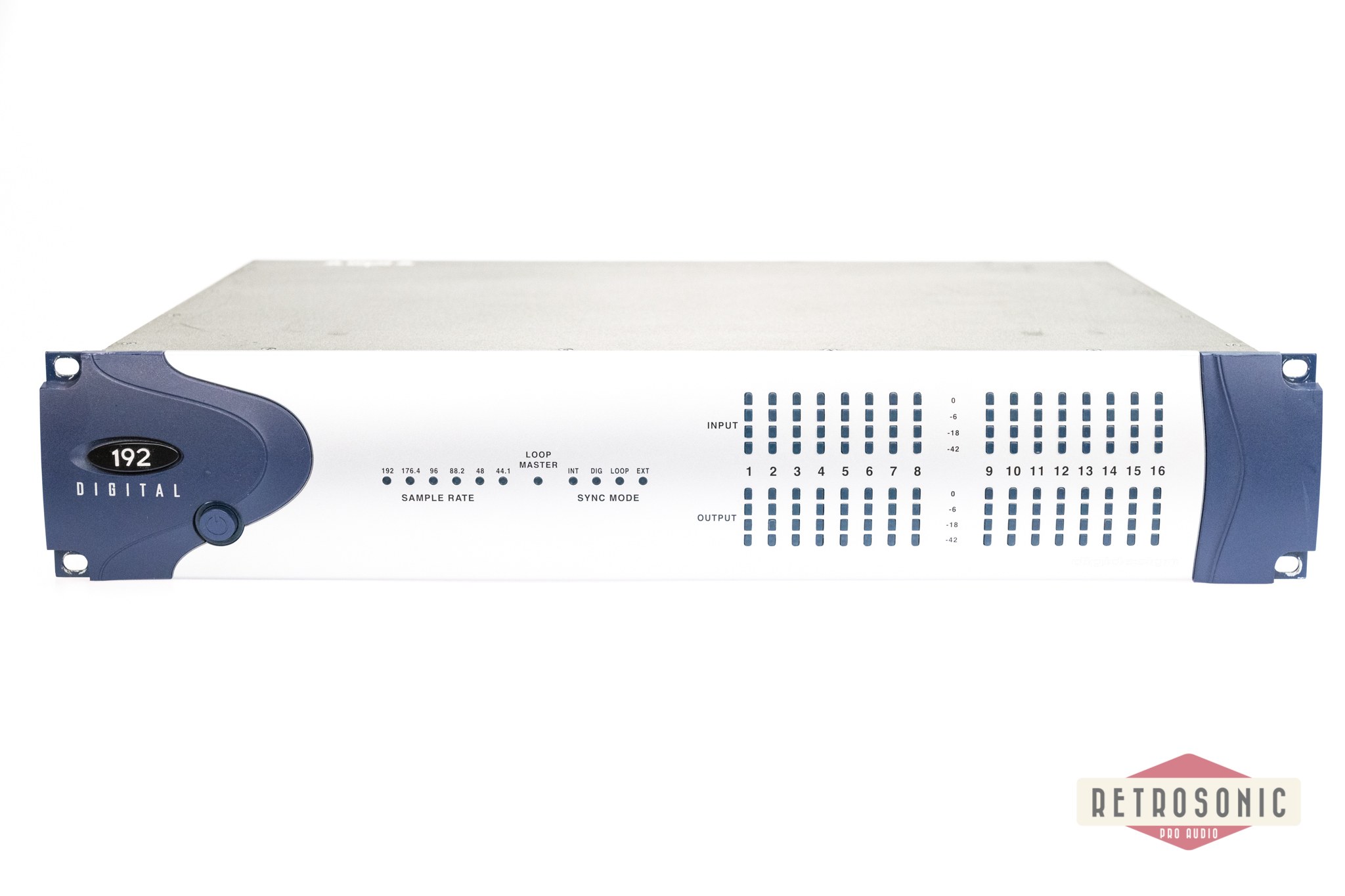

• 16 discrete channels of digital input and output, with 4-segment LED Meters to monitor input and output on each channel. Input and Out- put channels can include:
• Eight channels of 24-bit D/A and A/D converters for superior analog input and output at sample rates of 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz
• Ten channels of 24-bit-supported AES/EBU I/O. Eight-channel AES/EBU I/O supports sample rates of up to 96 kHz on all channels, and up to 192 kHz on four channels simultaneously. Two-channel AES/EBU I/O supports sample rates of up to 96 kHz.
• Sixteen channels of Optical I/O, through two pairs of Lightpipe (ADAT) connectors; one pair of optical ports can be switched to two channels of optical S/PDIF I/O
• Two 24-bit-capable S/PDIF I/O supporting sample rates of up to 96 kHz
• Real-time sample rate conversion on inputs of eight channels of either AES/EBU, Optical, or TDIF.
• External Clock input and output for synchronizing 192 I/O with external 1x Word Clock or 256x (Slave Clock) devices.
• Legacy Port for Digidesign-qualified Pro Tools|24 MIXTM audio interfaces.
• Optional addition of cards to expand analog or digital I/O.

Excellent working condition, very good visual condition. PSU works on 100V - 240V. EU power cord included.
