Heritage Audio 20 Channel mixer with subgroups and inserts

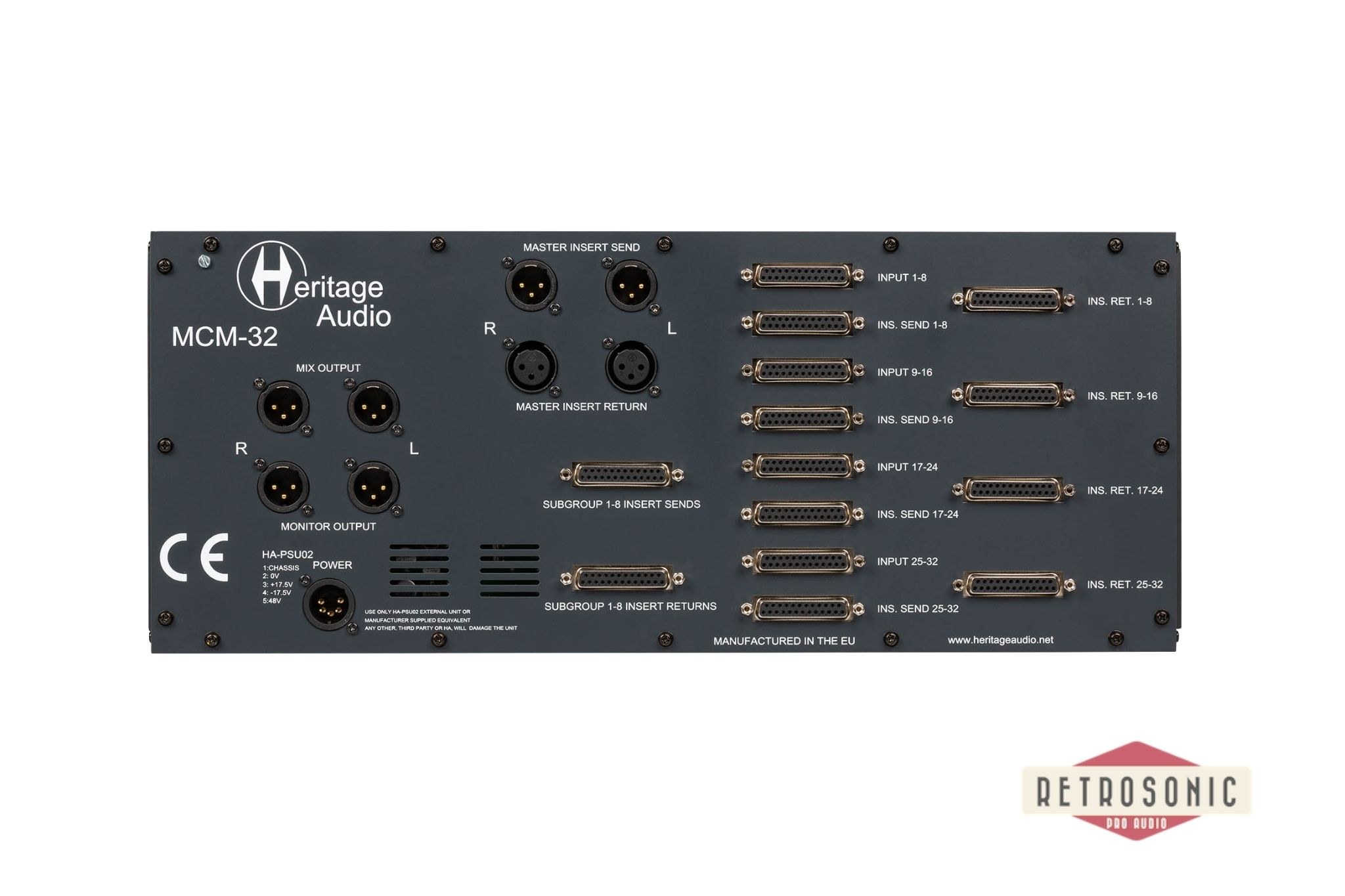

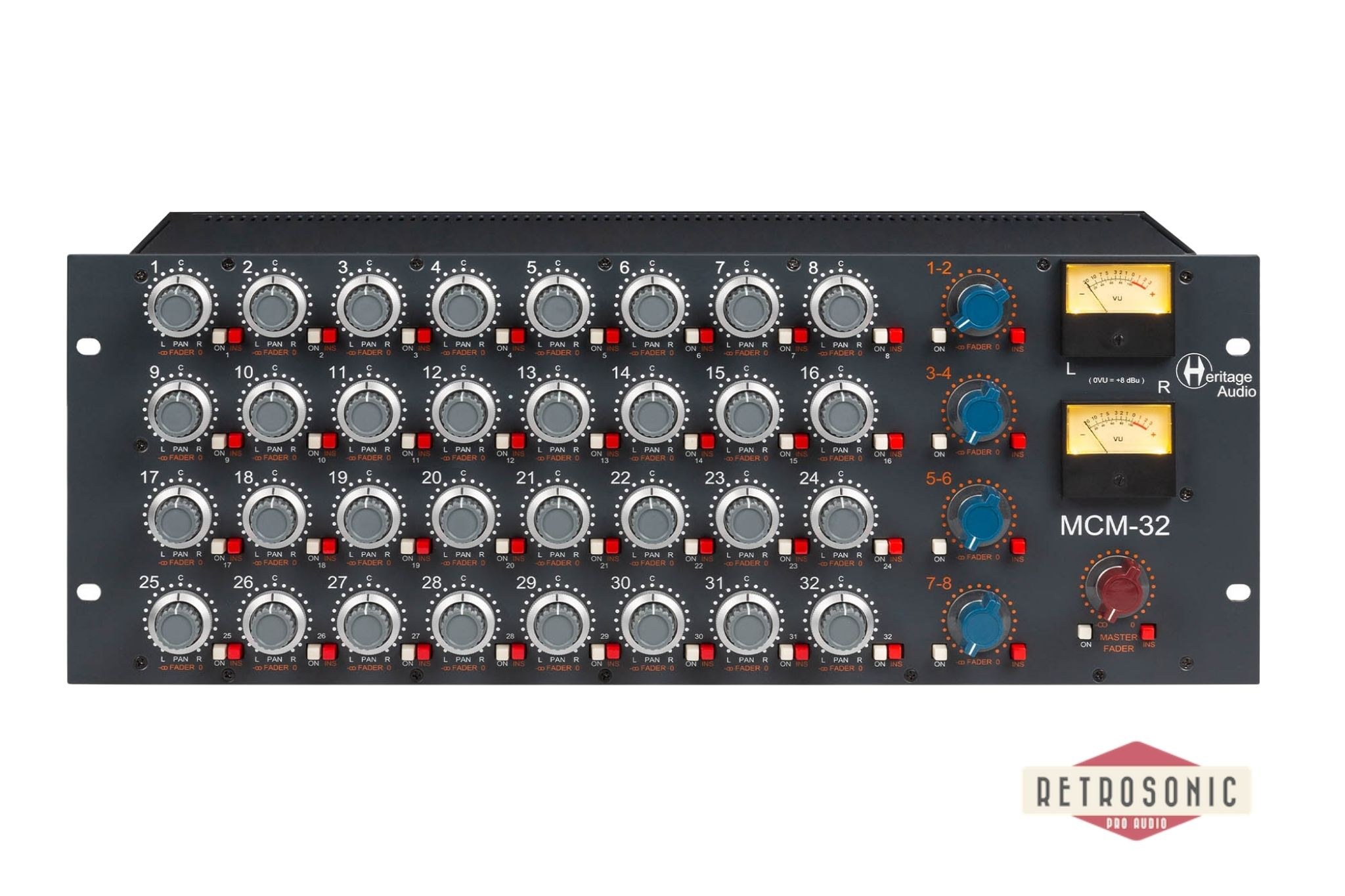

The MCM-32 employs a unique configuration, offering 32 input channels arranged into 4 subgroups of 8. Each channel features center detent Pan and Fader concentric controls plus balanced insert and mute switches.

The insert send points always have the signal present, so they can alternatively be used as direct outputs for recording without additional patch bays.

Specifications:
- Channel Input Impedance: Greater than 20 kΩ.
- Maximum channel input level: Greater than +26 dBu.
- Maximum insert return input level: Greater than +26 dBu.
- Maximum insert send level: Greater than +27 dBu, able to drive 600 Ω.
- Maximum output level: Greater than +26 dBu into 600 Ω.
- Frequency response: ±0.5 dB 20Hz to 20 kHz.
- THD + N: Not more than 0.07 % from 50 Hz to 10 kHz at +20 dBu output (22 Hz to 22 kHz bandwidth) into 600 Ω.
- Noise, all faders up, all subgroups in, measured at the main output, better than -80 dBu.
