Signex PST96D25P Isopatch Bantam Pro Series Ag, rear D-sub

The Isopatch Bantam is our longest running and most popular patch panel and the Pro Series is it’s younger, more attractive brother. With two rows of 48 bantam jacks and normalising programmable on every channel, it’s the industry-standard for pro-audio patching, with a smart and robust finish that will give your rack some wow-factor.

Pro Patching, Pure Style

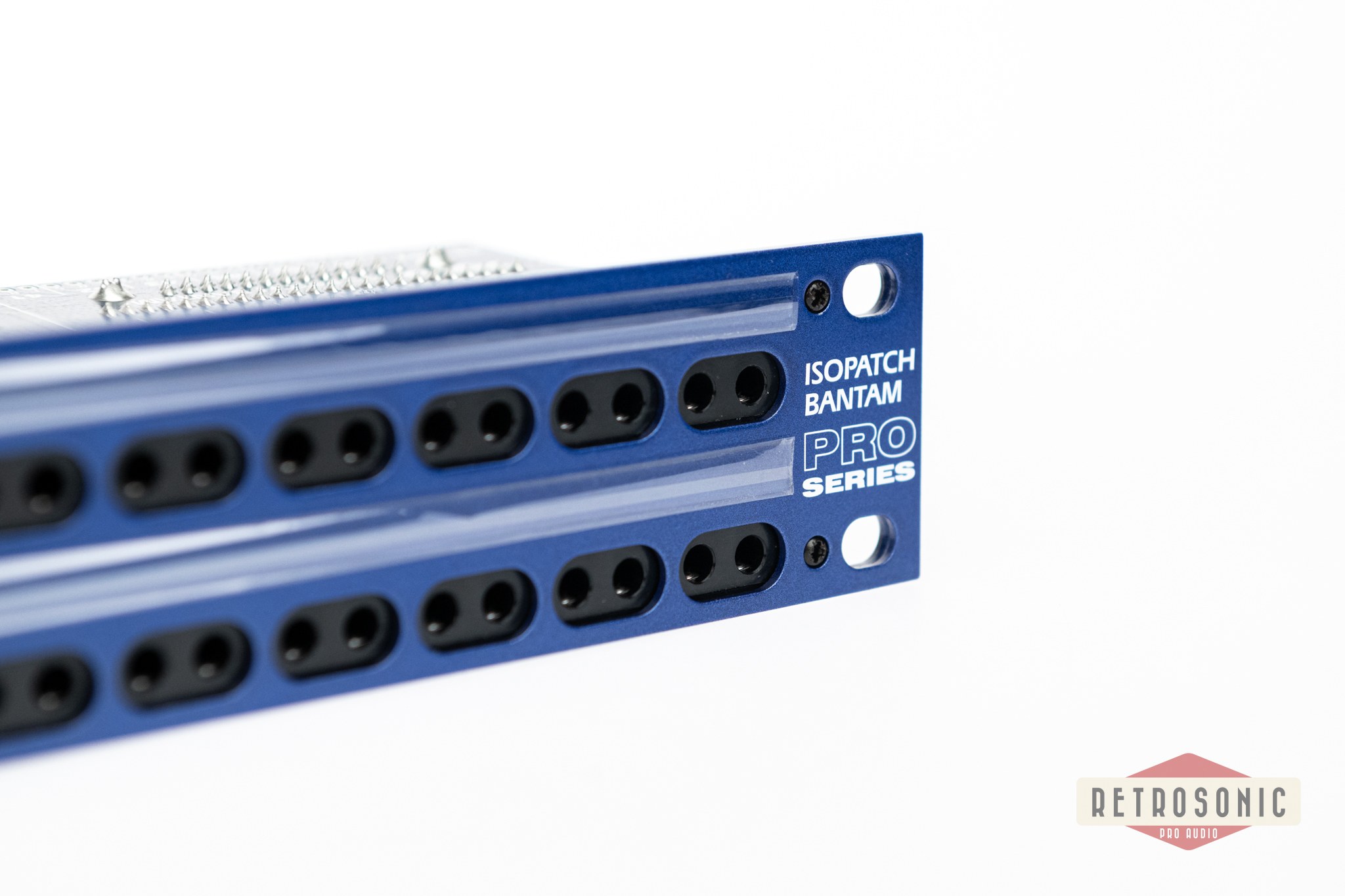

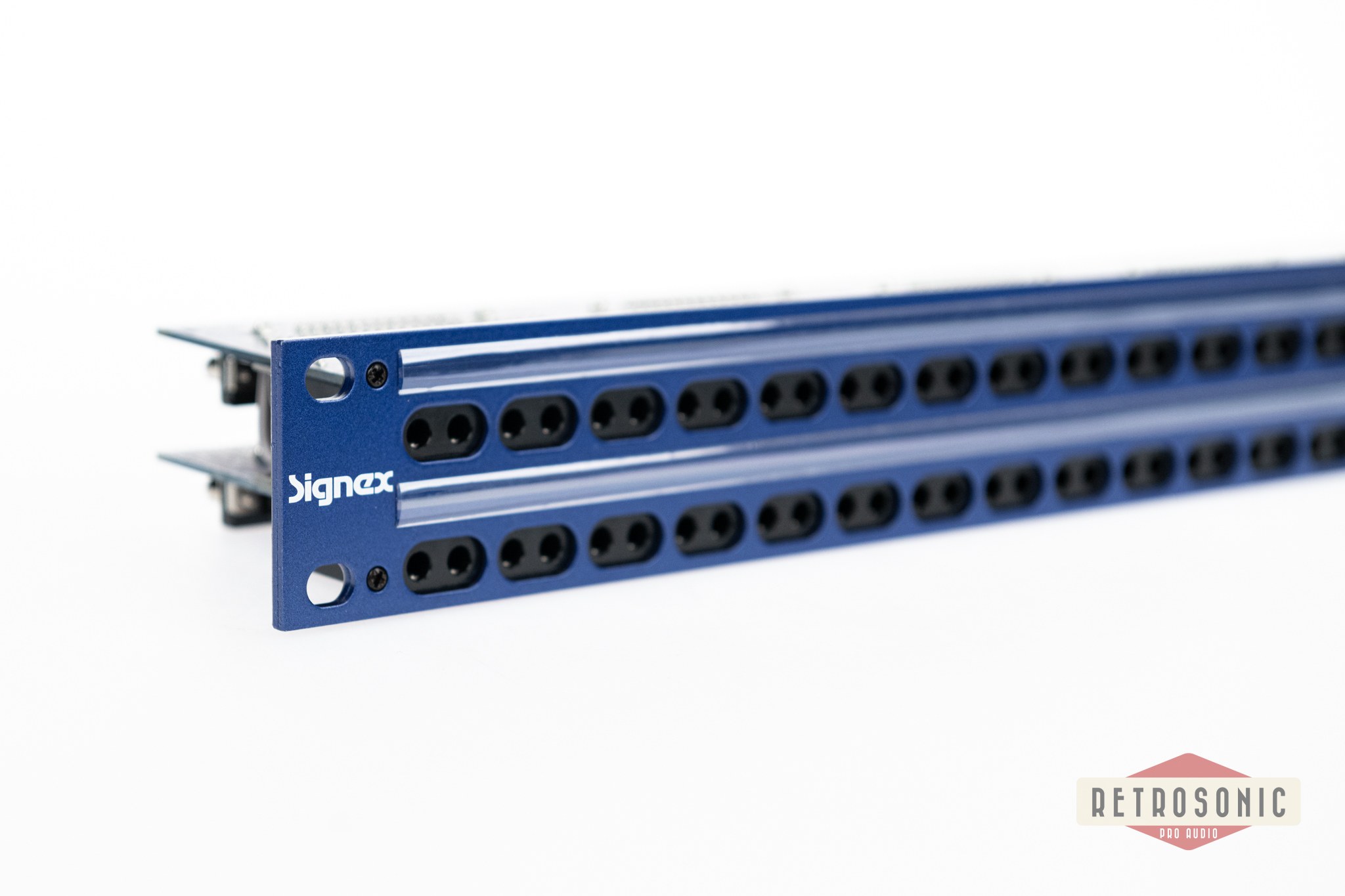

The Pro Series was introduced to offer an alternative to the standard CPT96. Offering the same proven connectors and PCB design, but with a striking two-layer steel front panel in metallic blue, the Pro Series looks the part in the best high-end studios.

Industry standard, studio quality

The twin Bantam Jack used in the Isopatch Bantam is of an enclosed design that helps to keep out the contaminants that shorten contact life, with spacing to accept twin ‘stereo’ plugs.

Contacts are silver or gold-plated phosphor-bronze.

Hand-built, quality construction

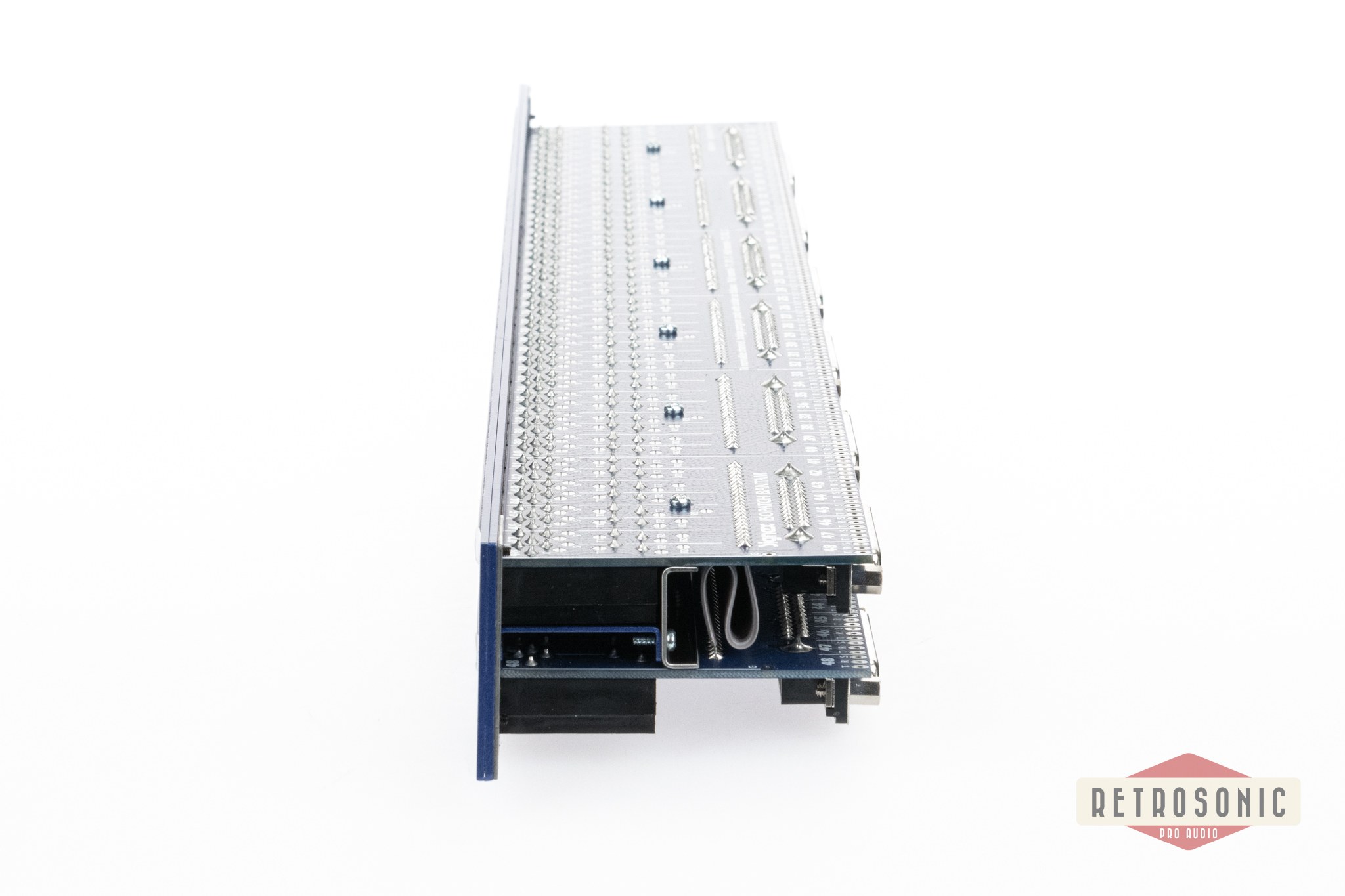

All components are mounted on two horizontal printed circuit boards (PCBs) which makes the Isopatch Bantam very solid and gives full access to most of the circuitry including parallel points and the special ‘program pads’ for normalising. The use of flexible jumper cables between top and bottom PCBs means
that the Isopatch Bantam can be opened up for servicing if needed.

Easy to install, built for simplicity

Unlike conventional patch panels, the Isopatch offers half or full normalising on every channel by simply soldering across special ‘program pads’ on the top PCB – No need for tedious hard-wiring. In fact, if the Isopatch Bantam is already installed, you don’t even have to unplug the rear connectors.

Multiple termination and patching options

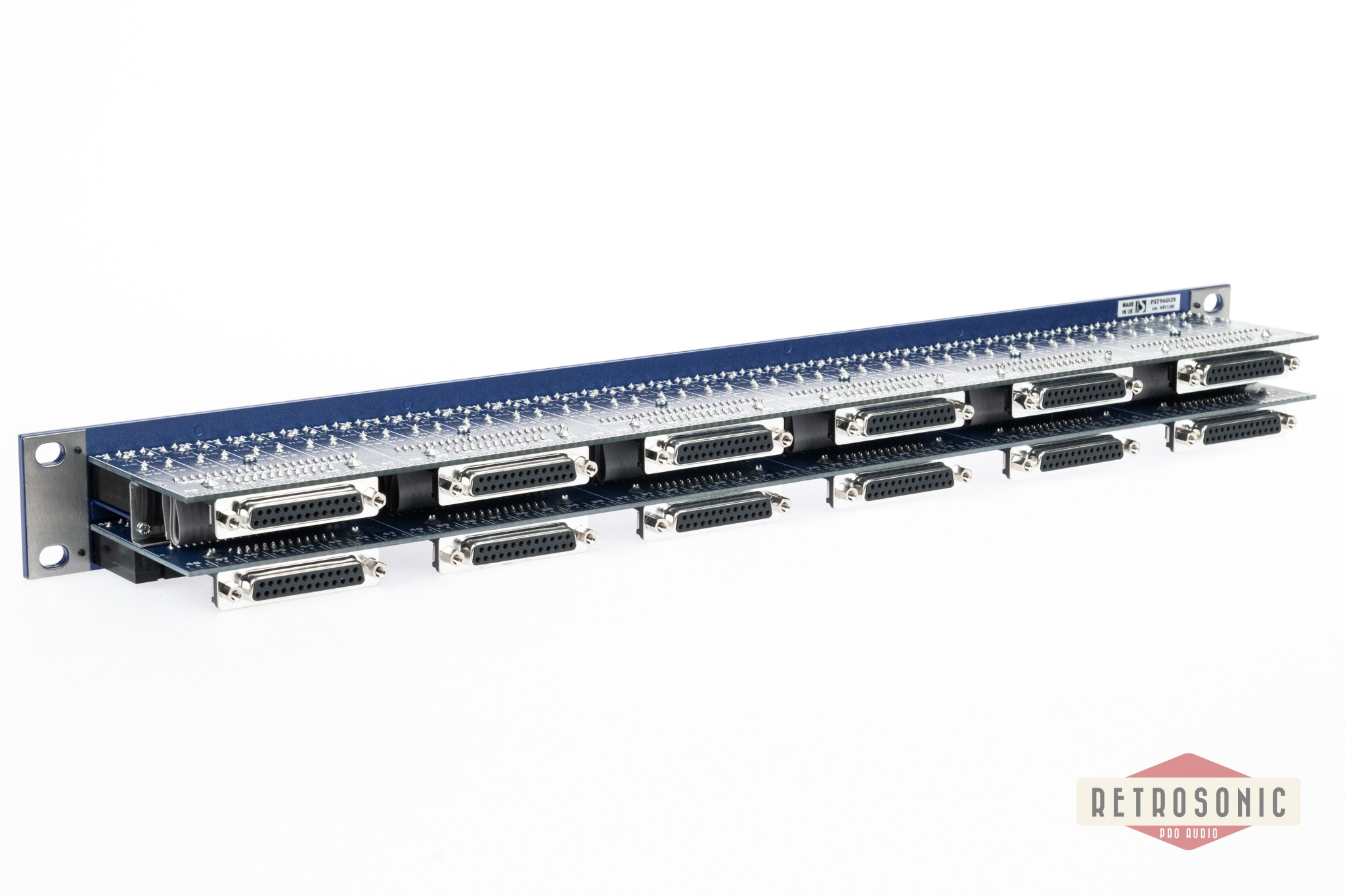

The PCB offers 25 way D-sub connectors wired to the Tascam 38/88 pattern, so that wiring looms can be made up separately, then just plugged in on site. Alternatively, direct solder versions are available with on board cable-tie points for every channel. The Isopatch bantam can be used for most types of audio signal including mono, stereo, balanced and unbalanced lines. It can also be used for mixer insert points without the need for special ‘splitter’ leads.

Features:

Two rows of 48 Bantam Jacks in 1U of rack space
Enclosed twin Jack design keeps out dust and dirt
Direct solder or 25 way D-sub rear termination
Half and full normalising available on all channels
Suitable for balanced/unbalanced and stereo signals
Lacing Bar Kit available for extra rear cable support
Neat and easy slide-in strips for socket designation
Suitable for insert points without special leads
Silver and Gold contact versions available
PCB parallel points for every Jack

Connections
96 Way

Front Sockets
4.4mm Bantam Jack

Front Socket Contacts
PST96* Silver plated phosphor-bronze, PST96*G Gold plated phosphor-bronze

Normalising
Half and full normalising programmable on every channel

Rear Termination
PST96D25P Rear 25 way D-sub female, PST96TP Direct solder terminations

Switch Contact Life
>10,000 operations

Switch Contact Resistance
<30mΩ

Rack Unit Size
1U Space / 19" Wide

Dimensions
PST96D25* W483 x H45 x D71 mm, PST96T* W483 x H45 x D69 mm

Net Weight
PST96D25* 1085g, PST96T* 930g
