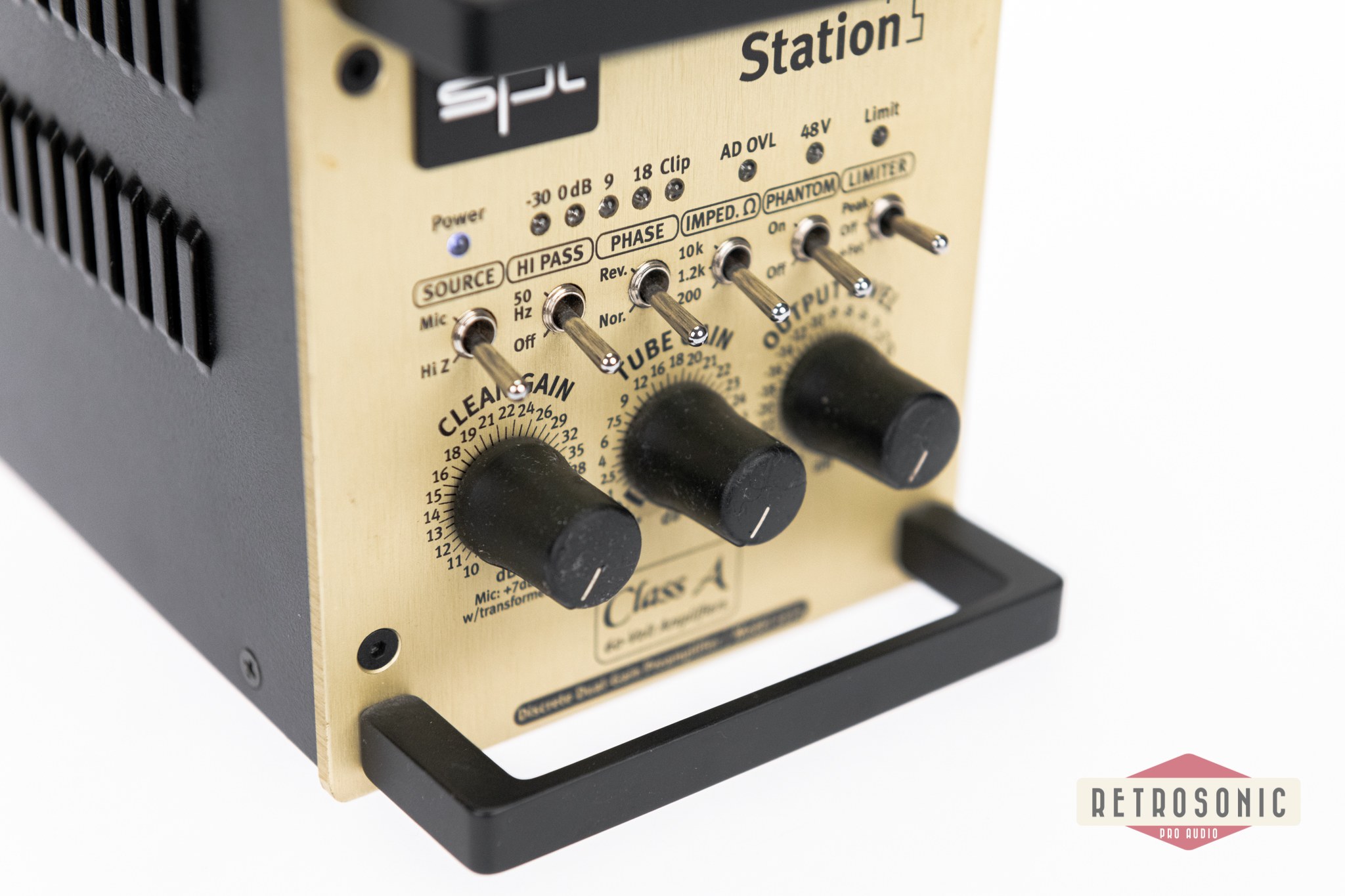

SPL Gain Station 1 + ADC

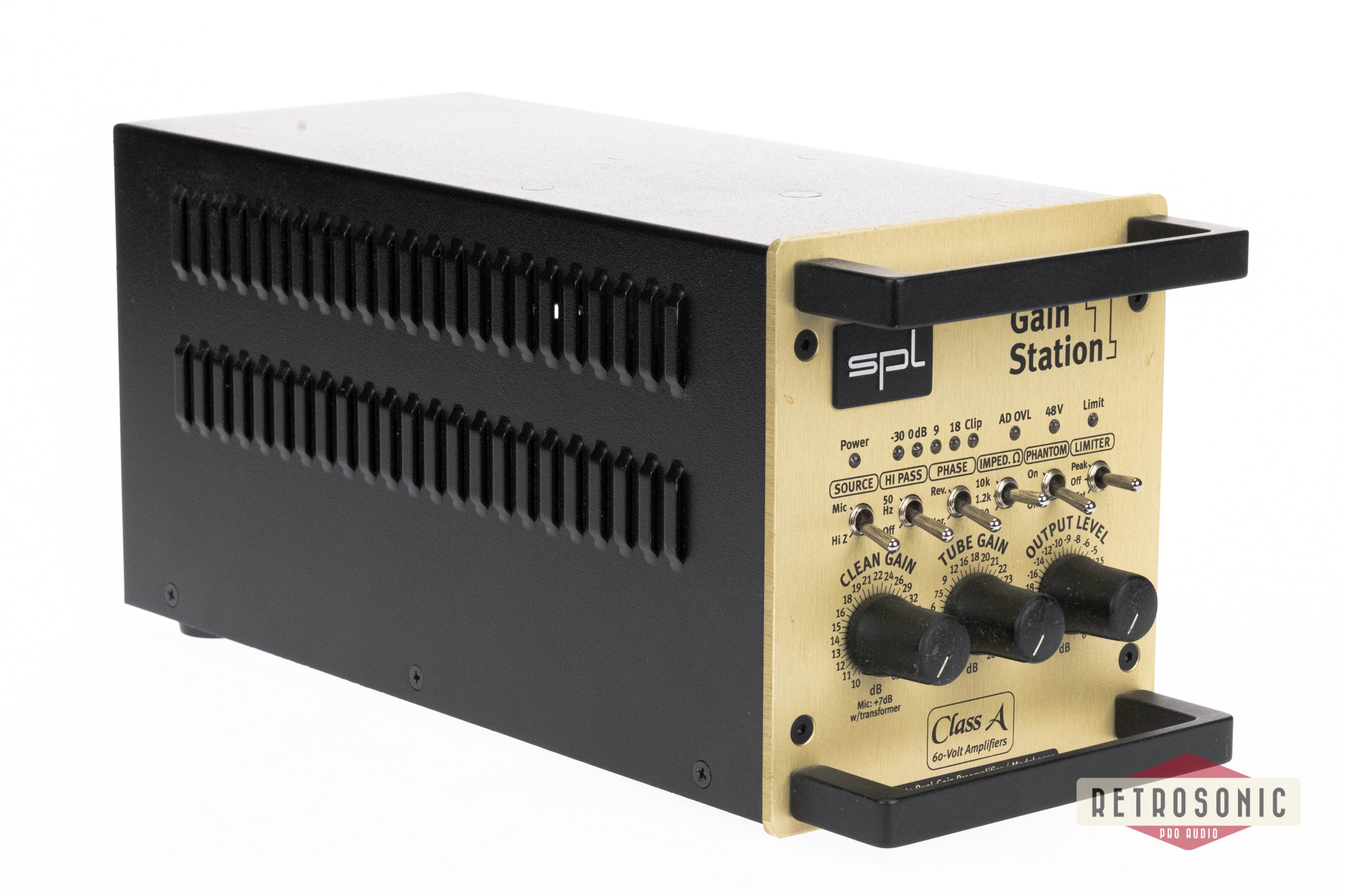

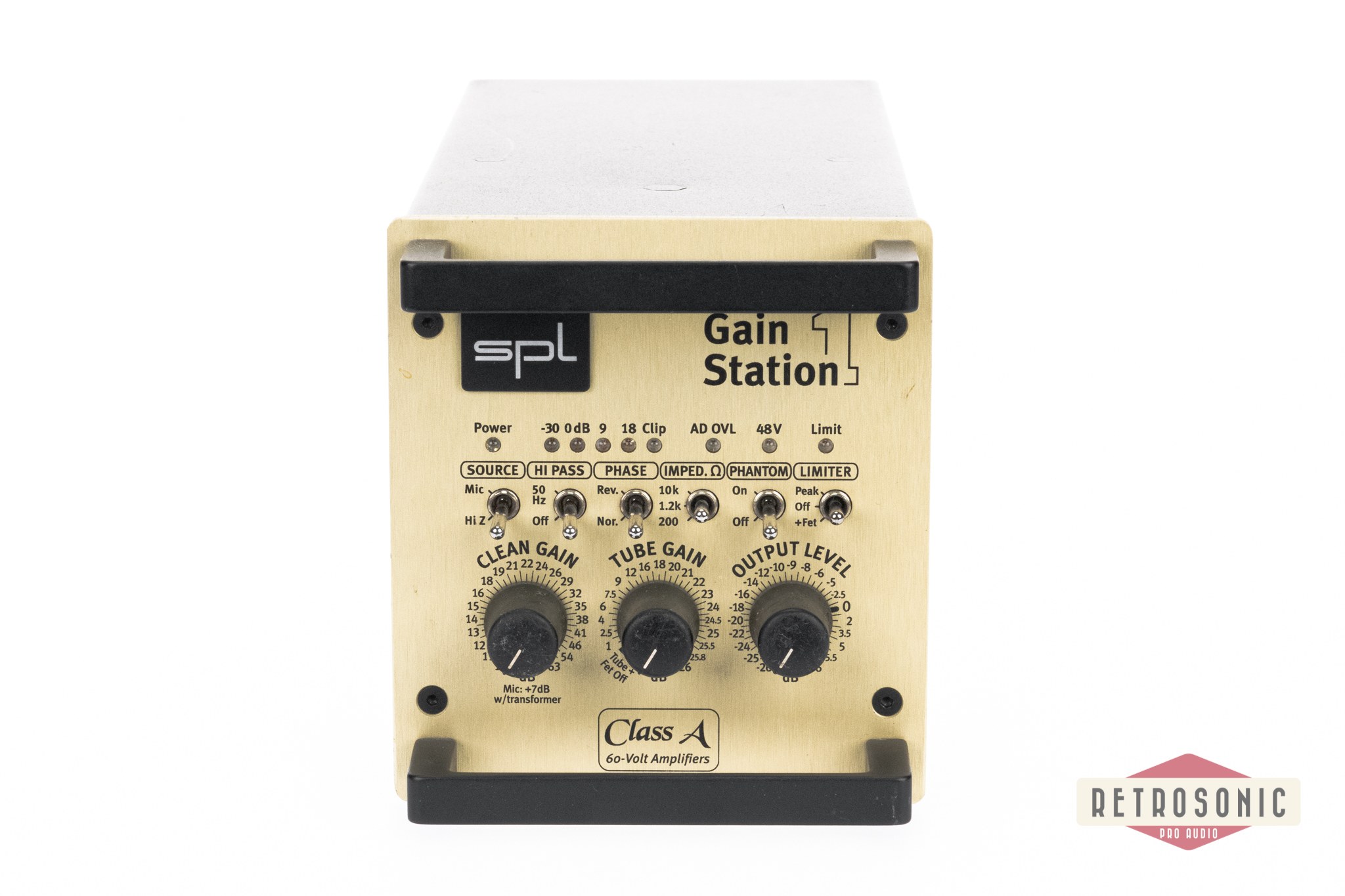

The GainStation 1 is a discrete high-end preamplifier that combines Class-A clean gain with high-sounding tube gain and operates with an operating voltage of 60 V.

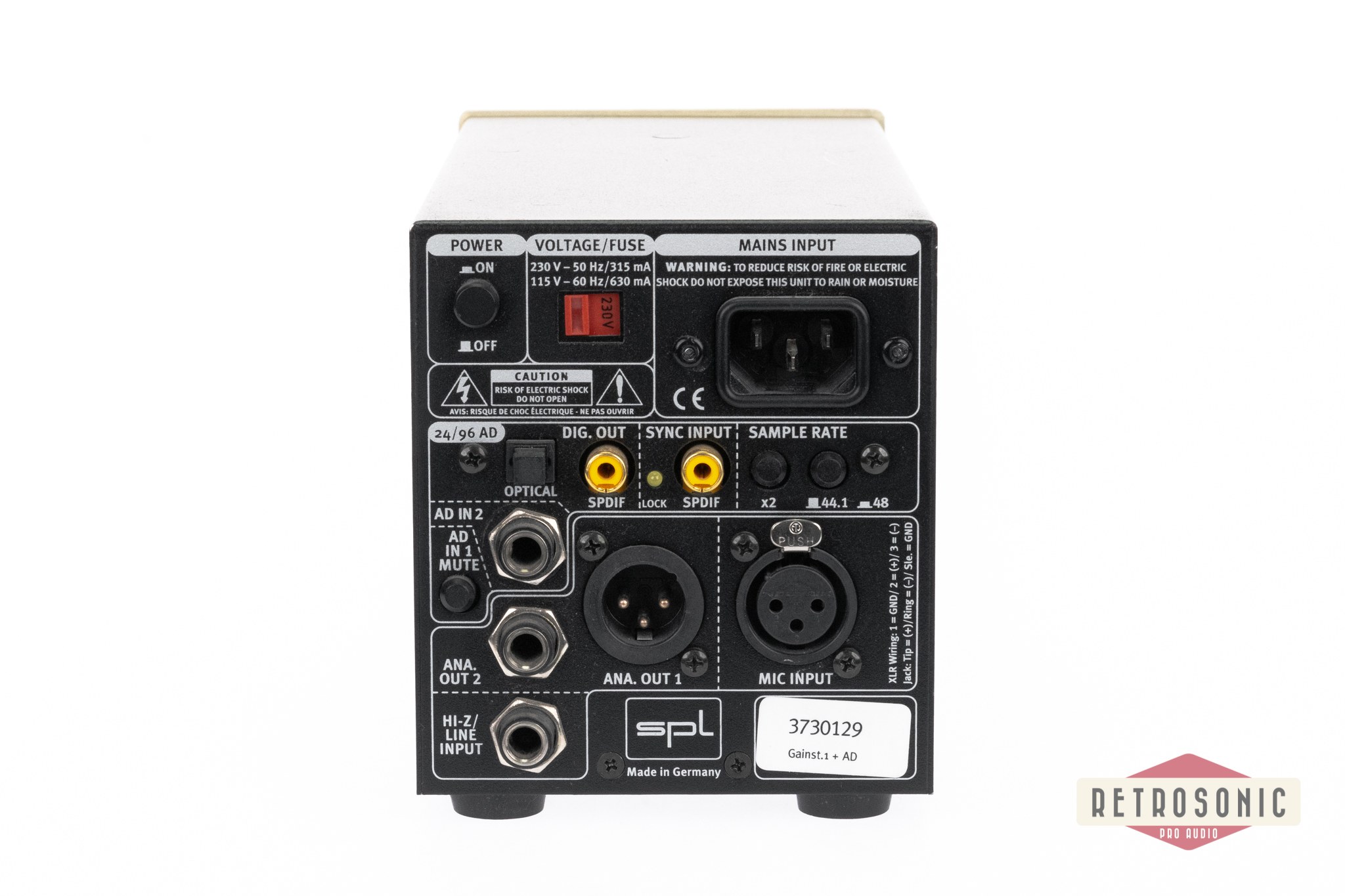

The 24 bit converter module provides an SPDIF output which is available as coaxial and optical output.

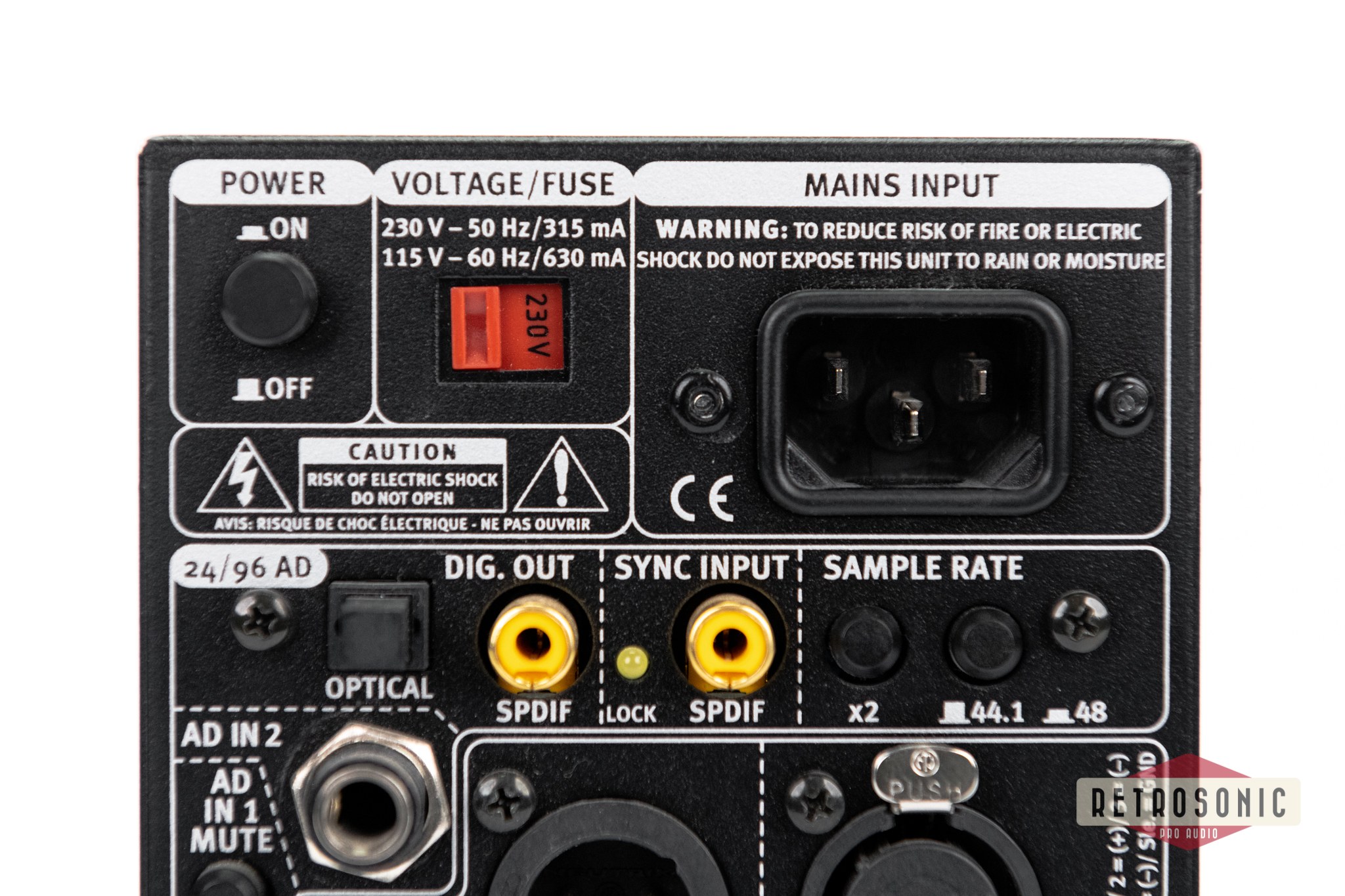

The internal sampling rate can be set with switches to 44.1, 48, 88.2 and 96 kHz. Other sampling rates (32, 176.4, 192 kHz) can only be set with an external synchronization signal.

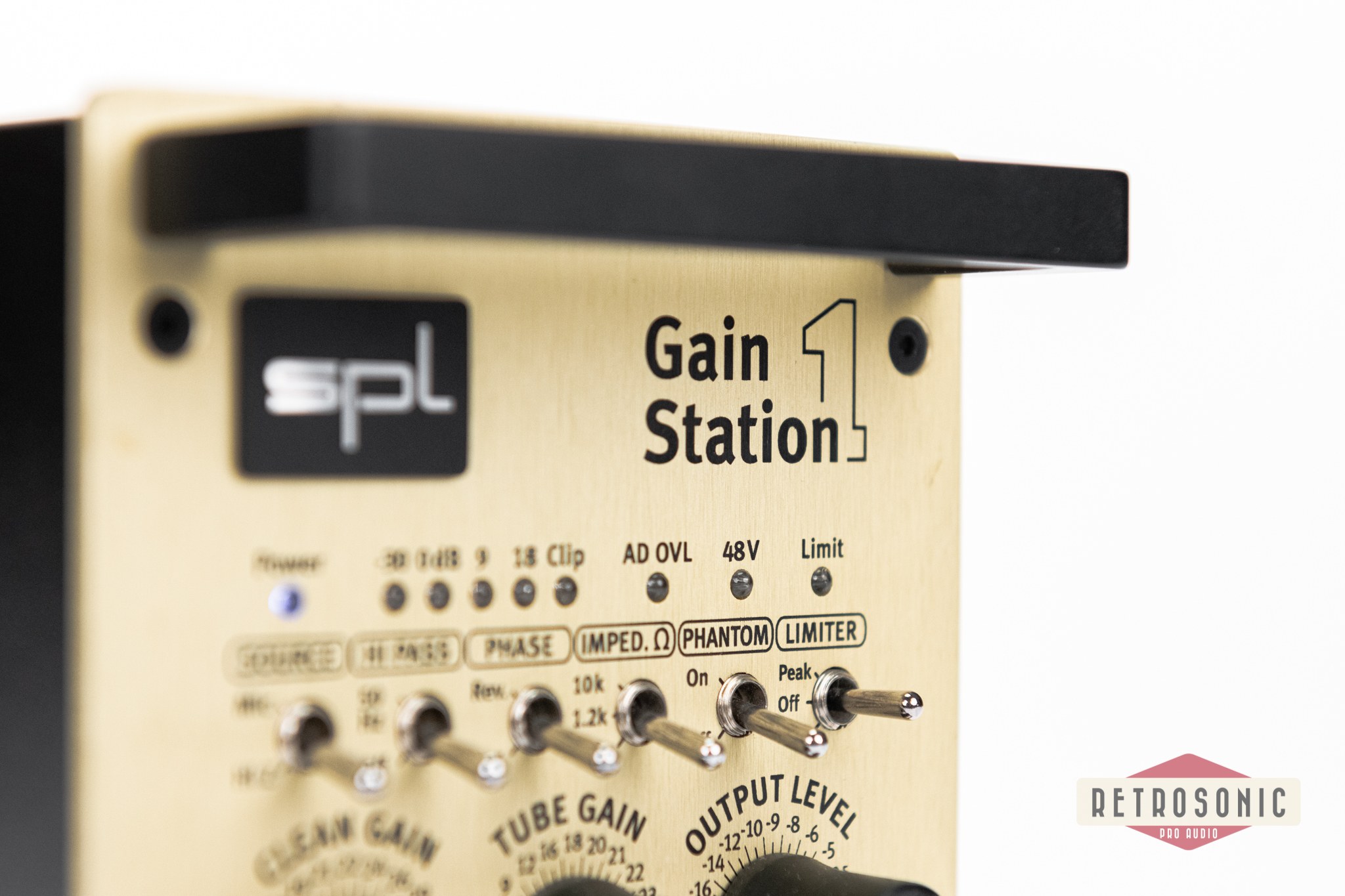

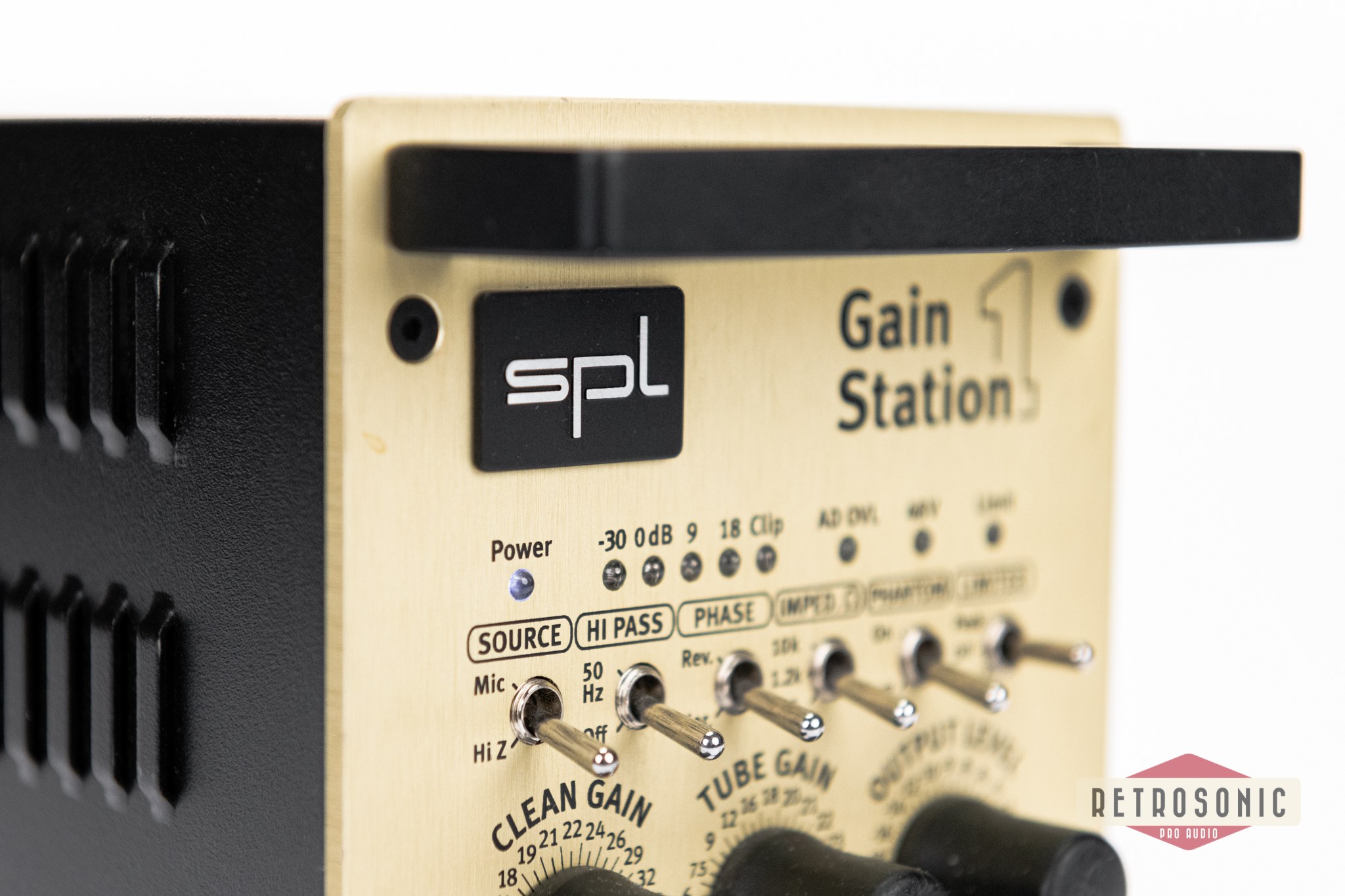

Features:

- Separately controllable transistor and tube preamplifiers
- The (switchable) tube stage delivers subtle to brutal tube saturation
- Only high-quality MKP film capacitors are used in the tube stage
- Peak/FET Limiter
- Polarity-reversal stage
- 48-Volt phantom power
- LED level indicator

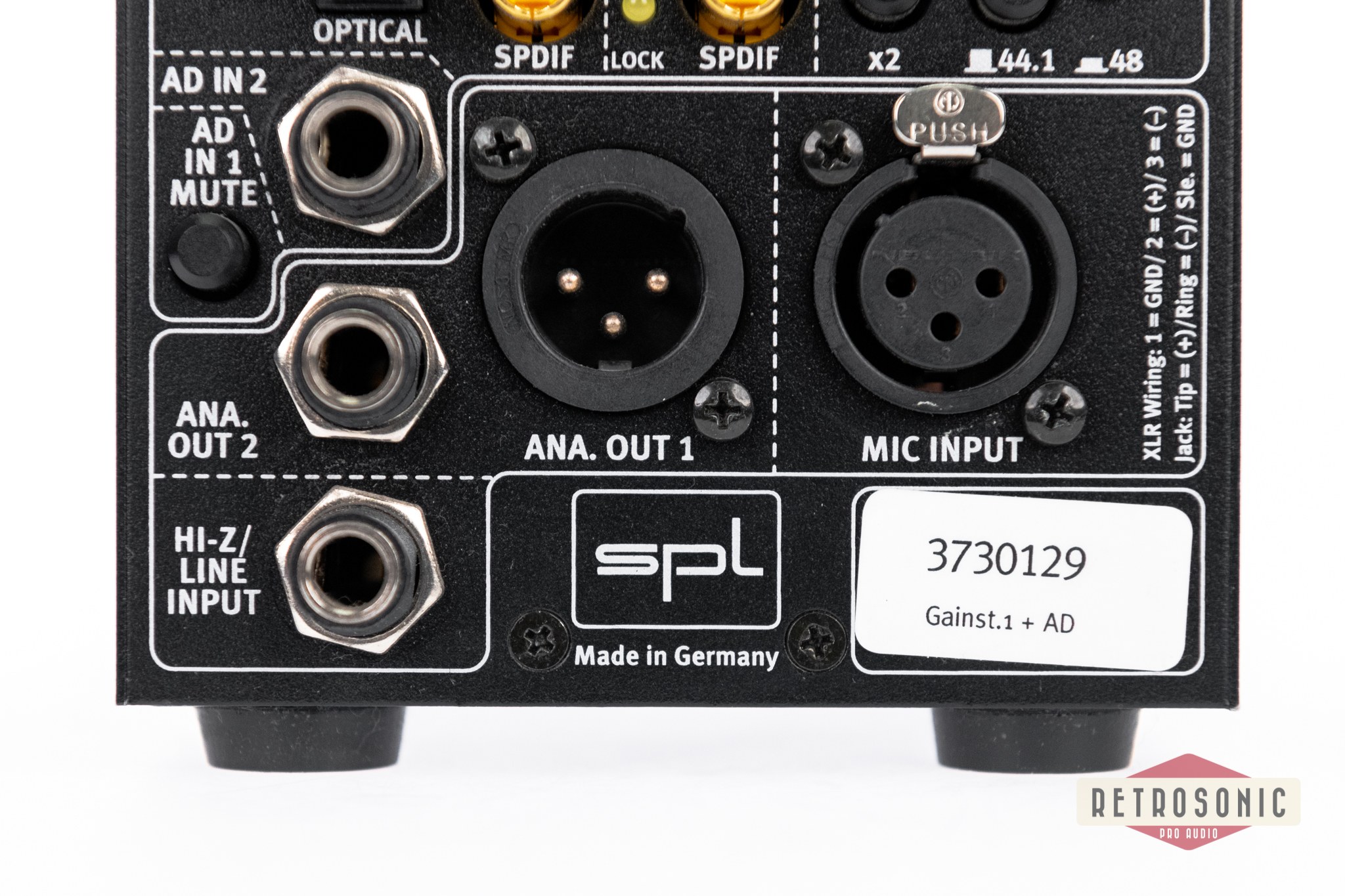

- Switchable impedance adjustment for the microphone input (200 Ω, 1,2 kΩ & 10 kΩ)
- Discrete operational amplifiers in Class A technology instead of industrial ICs
- Amplifier slew rate of <100 V/µs
- Gas-encapsulated relays with gold-plated contacts
- Resistors with 0.1 % tolerance in the entire audio path
- Power supply with double shielding, each voltage with its own winding and regulation

PSU works on 115-230V, EU power cord is included.
